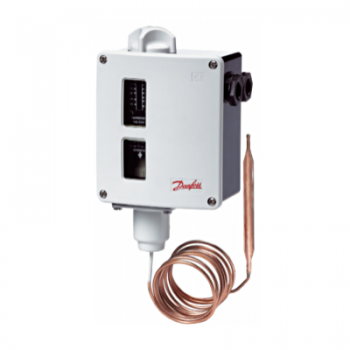

RT Termostatlar RT102
%20
7.912,84 TL
6.330,28 TL
656,24 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
017-514766
Fiyat
180,10 EUR + KDV
Havale
6.013,76 TL
(%5,00 havale indirimi)
25-90 C, 2 m kap. sensör, Otom. resetli, IP66
Product details
| Gross weight | 1.06 Kg |
| Net weight | 0.95 Kg |
| EAN | 5702423120376 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -50 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -58 °F |
| Approval | CCC CE EAC LVD PZH RMRS RoHS RoHS China TYSK |
| Cap. tube length fraction [in] | 78 3/4 in |
| Capillary tube length [mm] | 2000 mm |
| Charge type | Adsorption |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V AC3=4 A, 400 V DC13=12 W, 220 V LR=28 A, 400 V |
| Diff. @ Max. range setting[°C] [Max] | 20 °C |
| Diff. @ Max. range setting[°C] [Min] | 3.5 °C |
| Diff. @ Min. range setting[°C] [Max] | 10 °C |
| Diff. @ Min. range setting[°C] [Min] | 2.4 °C |
| Differential type | Adjustable |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| Max. sensor temperature [°C] | 300 °C |
| Max. sensor temperature [°F] | 572 °F |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product family name | RT thermostat |
| Product Group | Switches and thermostats |
| Product name | Thermostat |
| Product type | RT102 |
| Quantity per packing format | 15 pc |
| Reset function | Auto |
| Sensor size (Ø x L) [in] | 5/32 x 43 11/16 in |
| Sensor size (Ø x L) [mm] | 4 x 1110 mm |
| Sensor type | Capillary tube sensor |
| Serviceable | Contact systems |
| Temperature range [°C] [Max] | 90 °C |
| Temperature range [°C] [Min] | 25 °C |
| Temperature range [°F] [Max] | 194 °F |
| Temperature range [°F] [Min] | 77 °F |
