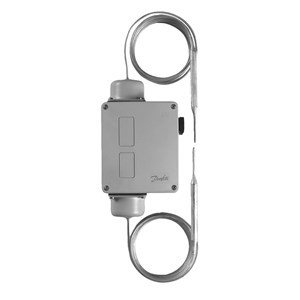

RT Fark Sıcaklık Termostatı RT270
%20
19.107,70 TL
15.286,16 TL
1.584,66 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
017D003166
Fiyat
434,90 EUR + KDV
Havale
14.521,85 TL
(%5,00 havale indirimi)
-30 -> +40 C, 5 m kapilar sensörlü, Otomatik resetli, G3/8A, IP66
Product details
| Gross weight | 1.7 Kg |
| Net weight | 1.42 Kg |
| EAN | 5702428042789 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -50 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -58 °F |
| Ammonia application | No |
| Approval | CCC CE EAC LVD PZH RMRS RoHS RoHS China TYSK |
| Cap. tube length fraction [in] | 196 7/8 in |
| Capillary tube length [mm] | 5000 mm |
| Contact differential [°C] | 2 °C |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V |
| Diff. temp. setting range [°C] [Max] | 15 °C |
| Diff. temp. setting range [°C] [Min] | 0 °C |
| Diff. temp. setting range [°F] [Max] | 59 °F |
| Diff. temp. setting range [°F] [Min] | 0 °F |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
Bu ürüne ilk yorumu siz yapın!
