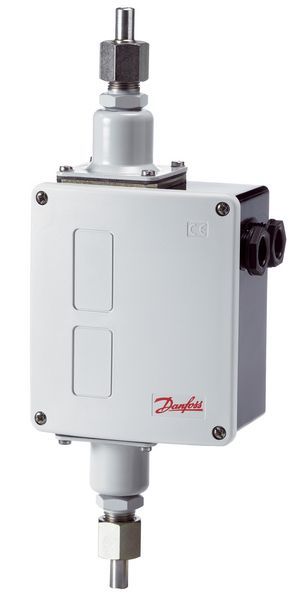

RT Fark Basınç Presostatları (Ayarlanabilir nötr bölge kontrollü) / RT260AL
%20
22.692,86 TL
18.154,29 TL
1.881,99 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
017D004866
Fiyat
516,50 EUR + KDV
Havale
17.246,57 TL
(%5,00 havale indirimi)
0.5-4 bar, G3/8A, Otomatik resetli, IP66
| TYPE CODE | RT260AL |
| WEIGHT | 1.02 Kg |
| ALARM SIGNAL | Falling |
| AMBIENT TEMP. RANGE | -50 - 70 °C |
| AMBIENT TEMP. RANGE | -58 - 158 °F |
| APPROVAL | CCC, CE, EAC, LVD, PZH, RMRS, RoHS, RoHS China, TYSK |
| CONTACT DIFF. | 0,30 bar |
| CONTACT FUNCTION | SPDT (neutral zone) |
| CONTACT RATING | AC1=10 A, 400 V |
| CONTACT RATING | AC15=3 A, 400 V |
| CONTACT RATING | AC3=4 A, 400 V |
| CONTACT RATING | DC13=12 W, 220 V |
| CONTACT RATING | LR=28 A, 400 V |
| DIFF. PRESS. SETTING RANGE | 0,50 - 4,00 bar |
| DIFF. PRESS. SETTING RANGE | 0,05 - 0,40 MPa |
| DIFF. PRESS. SETTING RANGE | 7,3 - 58,0 psi |
| EAN NO. | 5702428042727 |
| ELECTRICAL CONN. MALE/FEMALE | Female |
| ELECTR. CONN. | Screwed cable entry |
| ELECTR. CONN. SIZE | 2xPg 13.5 |
| ELECTR. CONN. STANDARD | DIN 40430 |
| ELECTR. SPEC. STANDARD | EN 60947-4/-5 |
| EN 60947 ELECTR. PROPERTIES | Insulation: 400V |
| EN 60947 ELECTR. PROPERTIES | Pollution degree: 3 |
| EN 60947 ELECTR. PROPERTIES | Rated impulse voltage: 4 kV |
| EN 60947 ELECTR. PROPERTIES | Short circuit prot, fuse: 10A |
| EN 60947 WIRING PROPERTIES | Flex, ferrules: 0.2-1.5 mm2 |
| EN 60947 WIRING PROPERTIES | Flex, no ferrules: 0.2-2.5 mm2 |
| EN 60947 WIRING PROPERTIES | Solid/stranded: 0.2-2.5 mm2 |
| ENCLOSURE RATING | IP66 |
| FACT. SETTING | 0,14 bar |
| FACT. SETTING | 0,014 MPa |
| FACT. SETTING | 2,0 psig |
| MAX. NEUTRAL ZONE | 0,90 bar |
| MAX. TEST PRESSURE | 25,0 bar |
| MAX. TEST PRESSURE | 362,0 psig |
| MWP | 22,0 bar |
| MWP | 319 psig |
| OPERAT. RANGE LP SIDE | -1 - 18 bar |
| OPERAT. RANGE LP SIDE | -15 - 261 psig |
| PACK FORMAT | Multi pack |
| PRESS. CONN. NOTE | Weld nipple d6.5/D10mm |
| PRESSURE CONN. SIZE | 3/8 |
| PRESS. CONN. STD. | ISO 228-1 |
| PRESS. CONN. TYPE | G |
| PRESSURE MALE/FEMALE | Male |
| PRESS. RANGE | -1,00 - 18,00 bar |
| PRESS. RANGE | -15,0 - 261,0 psig |
| PRODUCT ACCESSORIES | Generic accessories |
| PRODUCT ACCESSORIES | Switches accessories |
| DESCRIPT. | Diff. Pressure Switch |
| PROD. GROUP | Switches and thermostats |
| PROD. NAME | Differential pressure switch |
| PACK QTY. | 9 pc |
| RESET | Auto |
| SERVICEABLE | Contact systems |
