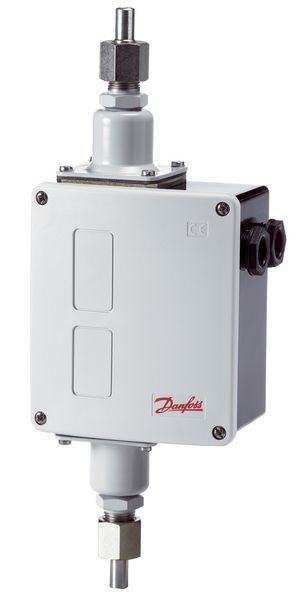

RT Fark Basınç Presostatları (Ayarlanabilir nötr bölge kontrollü) RT262AL
%20
23.822,01 TL
19.057,61 TL
1.975,64 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
017D004366
Fiyat
542,20 EUR + KDV
Havale
18.104,73 TL
(%5,00 havale indirimi)
0.1-1.5 bar, G3/8A, Otomatik resetli, IP66
| TYPE CODE | RT262AL |
| WEIGHT | 1.1 Kg |
| ALARM SIGNAL | Falling |
| AMBIENT TEMP. | -50 - 70 °C |
| AMBIENT TEMP. | -58 - 158 °F |
| APPROVAL | CCC, CE, EAC, LVD, PZH, RMRS, RoHS, RoHS China, TYSK |
| CONTACT DIFF. | 0,10 bar |
| CONTACT FUNCTION | SPDT (neutral zone) |
| CONTACT RATING | AC1=10 A, 400 V |
| CONTACT RATING | AC15=3 A, 400 V |
| CONTACT RATING | AC3=4 A, 400 V |
| CONTACT RATING | DC13=12 W, 220 V |
| CONTACT RATING | LR=28 A, 400 V |
| DIFF. PRESSURE SETTING RANGE | 0,10 - 1,50 bar |
| DIFF. PRESSURE SETTING RANGE | 0,01 - 0,15 MPa |
| DIFF. PRESSURE SETTING RANGE | 1,5 - 21,8 psi |
| EAN NO. | 5702428042765 |
| ELECTR. CONN. MALE/FEMALE | Female |
| ELECTR. CONN. | Screwed cable entry |
| ELECTR. CONN. SIZE | 2xPg 13.5 |
| ELECTR. CONN. STD. | DIN 40430 |
| ELECTR. SPEC. STANDARD | EN 60947-4/-5 |
| EN 60947 ELECTRICAL PROPERTIES | Insulation: 400V |
| EN 60947 ELECTRICAL PROPERTIES | Pollution degree: 3 |
| EN 60947 ELECTRICAL PROPERTIES | Rated impulse voltage: 4 kV |
| EN 60947 ELECTRICAL PROPERTIES | Short circuit prot, fuse: 10A |
| EN 60947 WIRING PROPERTIES | Flex, ferrules: 0.2-1.5 mm2 |
| EN 60947 WIRING PROPERTIES | Flex, no ferrules: 0.2-2.5 mm2 |
| EN 60947 WIRING PROPERTIES | Solid/stranded: 0.2-2.5 mm2 |
| ENCLOSURE RATING | IP66 |
| FACTORY SETTING | 0,30 bar |
| FACTORY SETTING | 0,030 MPa |
| FACTORY SETTING | 4,0 psig |
| MAX. NEUTRAL ZONE | 0,33 bar |
| MAX. TEST PRESSURE | 13,0 bar |
| MAX. TEST PRESSURE | 188,0 psig |
| MAX. WORKING PRESSURE | 11,0 bar |
| MAX. WORKING PRESSURE | 160 psig |
| REGULATION RANGE | -1 - 9 bar |
| REGULATION RANGE | -15 - 131 psig |
| PACK FORMAT | Multi pack |
| PRESSURE CONN. NOTES | Weld nipple d6.5/D10mm |
| PRESSURE CONN. SIZE | 3/8 |
| PRESSURE CONN. STD. | ISO 228-1 |
| PRESSURE CONN. TYPE | G |
| PRESSURE MALE/FEMALE | Male |
| PRESSURE RANGE | -1,00 - 9,00 bar |
| PRESSURE RANGE | -15,0 - 131,0 psig |
| PRODUCT ACCESSORIES | Generic accessories |
| PRODUCT ACCESSORIES | Switches accessories |
| PROD. DESCRIPTION | Diff. Pressure Switch |
| PROD. GROUP | Switches and thermostats |
| PROD. NAME | Differential pressure switch |
| PACK QTY. | 9 PC |
| REFRIGERANTS | R11 |
| REFRIGERANTS | R12 |
| REFRIGERANTS | R123 |
| REFRIGERANTS | R124 |
| REFRIGERANTS | R134a |
| REFRIGERANTS | R22 |
| REFRIGERANTS | R404A |
| REFRIGERANTS | R407A |
| REFRIGERANTS | R407C |
| REFRIGERANTS | R407F |
| REFRIGERANTS | R407H |
| REFRIGERANTS | R422B |
| REFRIGERANTS | R422D |
| REFRIGERANTS | R438A |
| REFRIGERANTS | R507C |
| REFRIGERANTS | R717 |
| RESET | AUTO |
| SERVICEABLE | Contact systems |
