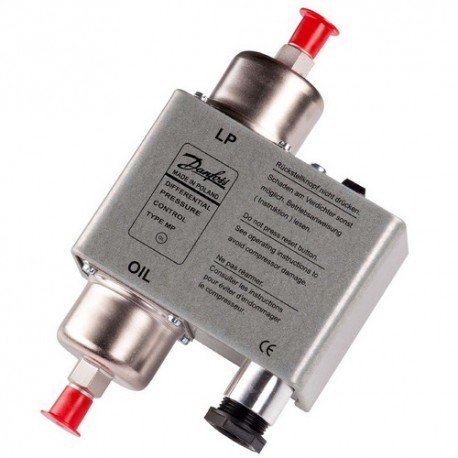

MP Serisi Yağ Basınç Presostatları MP55
%20
7.460,31 TL
5.968,24 TL
618,71 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060B017166
Fiyat
169,80 EUR + KDV
Havale
5.669,83 TL
(%5,00 havale indirimi)
-1 -> 12 bar, Diff. : 0.3 - 4.5 bar, Devreye girme süresi : 60 Sn
| TYPE CODE | MP55 |
| WEIGHT | 0.660 Kg |
| ADJUSTMENT | Cut out for falling pressure |
| AMBIENT TEMP. NOTE | Bellows max 100 °C/212 °F |
| AMBIENT TEMP. RANGE | -40 - 60 °C |
| AMBIENT TEMP. RANGE | -40 - 140 °F |
| APPROVAL | CCC, CE, EAC, GL, LVD, RINA, RoHS, RoHS China, TYSK |
| CONTACT DIFF. | 0,20 bar |
| CONTACT FUNCTION | SPDT |
| CONTACT RATING | AC15=2 A, 250 V |
| CONTACT RATING | DC13=0.2 A, 250 V |
| DIFF. PRESS. SETTING RANGE | 0,30 - 4,50 bar |
| DIFF. PRESS. SETTING RANGE | 0,03 - 0,45 MPa |
| DIFF. PRESS. SETTING RANGE | 4,3 - 65,0 psi |
| EAN NO. | 5702428365512 |
| ELECTRICAL CONN. MALE/FEMALE | Female |
| ELECTR. CONN. | Screwed cable entry |
| ELECTR. CONN. SIZE | PG 13.5 |
| ELECTR. CONN. STANDARD | DIN 40430 |
| ELECTR. SPEC. STANDARD | EN 60947-5 |
| EN 60947 ELECTR. PROPERTIES | Insulation: 250V |
| EN 60947 ELECTR. PROPERTIES | Pollution degree: 3 |
| EN 60947 ELECTR. PROPERTIES | Rated impulse voltage: 4 kV |
| EN 60947 ELECTR. PROPERTIES | Short circuit prot, fuse: 2A |
| EN 60947 WIRING PROPERTIES | Flex, ferrules: 0.2-1.0 mm2 |
| EN 60947 WIRING PROPERTIES | Flex, no ferrules: 0.2-1.5 mm2 |
| EN 60947 WIRING PROPERTIES | Solid/stranded: 0.2-1.5 mm2 |
| ENCLOSURE RATING | IP20 |
| EQUIPM. | Thermal time relay |
| FACT. SETTING | 0,65 bar |
| FACT. SETTING | 9,0 psig |
| IDENTICAL PROD. | 060B101166 |
| MAX. TEST PRESSURE | 22,0 bar |
| MAX. TEST PRESSURE | 319,0 psig |
| MWP | 17,0 bar |
| MWP | 245 psig |
| OPERAT. RANGE LP SIDE | -1 - 12 bar |
| OPERAT. RANGE LP SIDE | -15 - 175 psig |
| PACK FORMAT | Multi pack |
| PRESSURE CONN. SIZE | 1/4 IN |
| PRESS. CONN. STD. | DIN 8906 |
| PRESS. CONN. TYPE | Flare |
| PRESSURE MALE/FEMALE | Male |
| PRODUCT ACCESSORIES | Generic accessories |
| DESCRIPT. | Diff. Pressure Switch |
| PROD. GROUP | Switches and thermostats |
| PROD. NAME | Differential pressure switch |
| PACK QTY. | 21 pc |
| REFRIGERANT | R11 |
| REFRIGERANT | R113 |
| REFRIGERANT | R12 |
| REFRIGERANT | R124 |
| REFRIGERANT | R134a |
| REFRIGERANT | R22 |
| REFRIGERANT | R404A |
| REFRIGERANT | R407A |
| REFRIGERANT | R407C |
| REFRIGERANT | R407F |
| REFRIGERANT | R407H |
| REFRIGERANT | R422B |
| REFRIGERANT | R422D |
| REFRIGERANT | R438A |
| REFRIGERANT | R448A |
| REFRIGERANT | R449A |
| REFRIGERANT | R450A |
| REFRIGERANT | R452A |
| REFRIGERANT | R507C |
| REFRIGERANT | R513A |
| RELAY RELEASE TIME | 60 s |
| RESET | Manual Min |
| SERVICEABLE | No |
