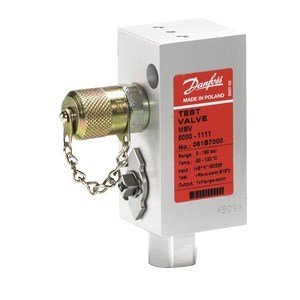

MBV5000 Blok Tip Basınç Test Valfleri MBV5000
%20
11.954,94 TL
9.563,95 TL
991,46 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
061B7001
Fiyat
272,10 EUR + KDV
Havale
9.085,76 TL
(%5,00 havale indirimi)
MBV5000-1211, 2 çıkış, L : 76 mm
Product details
| Gross weight | 0.86 Kg |
| Net weight | 0.8 Kg |
| EAN | 5702423058983 |
| Ambient temperature range [°C] [Max] | 120 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 248 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | EAC RoHS |
| MiniMess included | Yes |
| Number of inputs [pc] | 2 pc |
| Number of outputs [pc] | 2 pc |
| Operating temperature [°C] [Max] | 120 °C |
| Operating temperature [°C] [Min] | -20 °C |
| Operating temperature [°F] [Max] | 248 °F |
| Operating temperature [°F] [Min] | -4 °F |
| Output connection type | Flange |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range (Pi) [bar] [Max] | 120 bar |
| Pressure range (Pi) [bar] [Min] | 0 bar |
| Pressure range (Pi) [bar] oil [Max] | 180 bar |
| Pressure range (Pi) [bar] oil [Min] | 0 bar |
| Pressure thread conn standard | ISO 228-1 |
| Product description | Test Valve |
| Product Group | Shut-off and regulating valves |
| Product name | Test valve |
| Product type | MBV 5000 |
| Pulse-snubber | No |
| Quantity per packing format | 18 pc |
| Specification key | MBV5000-1211 |
| Test function | Separate |
| Test pressure connection size | 16 x 2 |
| Test pressure connection type | M |
