MBV5000 Blok Tip Basınç Test Valfleri MBV5000
%20
3.845,03 TL
3.076,02 TL
318,88 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
061B7000
Fiyat
87,90 EUR + KDV
Havale
2.922,22 TL
(%5,00 havale indirimi)
MBV5000-1111, 1 çıkış, L : 36 mm
Product details
| Gross weight | 0.43 Kg |
| Net weight | 0.4 Kg |
| EAN | 5702423058563 |
| Ambient temperature range [°C] [Max] | 120 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 248 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | EAC RoHS |
| MiniMess included | Yes |
| Number of inputs [pc] | 1 pc |
| Number of outputs [pc] | 1 pc |
| Operating temperature [°C] [Max] | 120 °C |
| Operating temperature [°C] [Min] | -20 °C |
| Operating temperature [°F] [Max] | 248 °F |
| Operating temperature [°F] [Min] | -4 °F |
| Output connection type | Flange |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range (Pi) [bar] [Max] | 120 bar |
| Pressure range (Pi) [bar] [Min] | 0 bar |
| Pressure range (Pi) [bar] oil [Max] | 180 bar |
| Pressure range (Pi) [bar] oil [Min] | 0 bar |
| Pressure thread conn standard | ISO 228-1 |

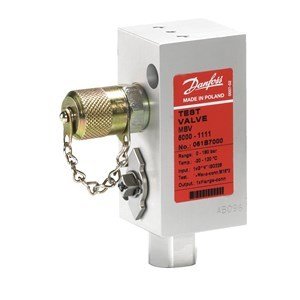

| Product description | Test Valve |
| Product Group | Shut-off and regulating valves |
| Product name | Test valve |
| Product type | MBV 5000 |
| Pulse-snubber | No |
| Quantity per packing format | 15 pc |
| Specification key | MBV5000-1111 |
| Test function | Separate |
| Test pressure connection size | 16 x 2 |
| Test pressure connection type | M |
