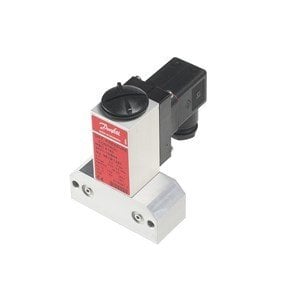

MBC5180 Blok Tip Fark Basınç Presostatları (Marin Onaylı) MBC5180
%20
15.843,80 TL
12.675,04 TL
1.313,98 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
061B128066
Fiyat
362,20 EUR + KDV
Havale
12.041,29 TL
(%5,00 havale indirimi)
0.3-5 bar, 2 x G1/4A iç dişli ve flanşlı, Otomatik resetli, IP65
Product details
| Gross weight | 0.39 Kg |
| Net weight | 0.27 Kg |
| EAN | 5702423218714 |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Ammonia application | No |
| Approval | ABS CCC CCS CE EAC GL KRS LR LVD NKK RINA RoHS RoHS China TYSK |
| Burst pressure [bar] | 90 bar |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V DC13=12 W, 125 V |
| Diff.press.setting range [bar] [Max] | 5 bar |
| Diff.press.setting range [bar] [Min] | 0.3 bar |
| Diff.press.setting range [MPa] [Max] | 0.5 MPa |
| Diff.press.setting range [MPa] [Min] | 0.03 MPa |
| Diff.press.setting range [psi] [Max] | 72.5 psi |
| Diff.press.setting range [psi] [Min] | 4.3 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| Max. test pressure [bar] Pe | 68 bar |
| Max. test pressure [psig] | 986 psig |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 653 psig |
| Operat. range LP side [bar] Pe [Max] | 30 bar |
| Operat. range LP side [bar] Pe [Min] | 0 bar |
| Operat. range LP side [psig]Pe [Max] | 435 psig |
| Operat. range LP side [psig]Pe [Min] | 0 psig |
| Packing format | Multi pack |
| Pressure connection notes | With flange |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Product accessories | Generic accessories |
| Product description | Diff. Pressure Switch |
| Product Group | Switches and thermostats |
| Product name | Differential pressure switch |
| Product type | MBC 5180 |
| Quantity per packing format | 10 pc |
| Reset function | Auto |
| Serviceable | No |
| Specification key | 2031-1DB04 |
