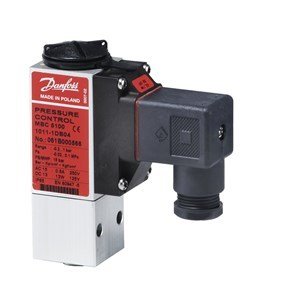

MBC5100 Blok Tip Presostatlar (Marin Onaylı) MBC5100
%50
9.584,16 TL
4.792,08 TL
496,78 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
061B100866
Fiyat
218,14 EUR + KDV
Havale
4.552,48 TL
(%5,00 havale indirimi)
1-10 bar, G1/4A iç dişli, Otomatik resetli, IP65
Product details
| Gross weight | 0.29 Kg |
| Net weight | 0.24 Kg |
| EAN | 5702423218653 |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL KRS LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| Burst pressure [bar] | 300 bar |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V DC13=12 W, 125 V |
| Diff.@Max. range setting [bar] | 2.5 bar |
| Diff.@Min. range setting [bar] | 1 bar |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| Max. test pressure [bar] Pe | 150 bar |
| Max. test pressure [psig] | 2176 psig |
| Max. Working Pressure [bar] | 150 bar |
| Max. Working Pressure [psig] | 2175 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure sensing element | Diaphragm |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product Group | Switches and thermostats |
| Product name | Pressure switch |
| Product type | MBC 5100 |
| Quantity per packing format | 32 pc |
| Regulation range [bar] Pe [Max] | 10 bar |
| Regulation range [bar] Pe [Min] | 1 bar |
| Regulation range [MPa] Pe [Max] | 1 MPa |
| Regulation range [MPa] Pe [Min] | 0.1 MPa |
| Reset function | Auto |
| Serviceable | No |
| Specification key | 2431-1CB04 |
