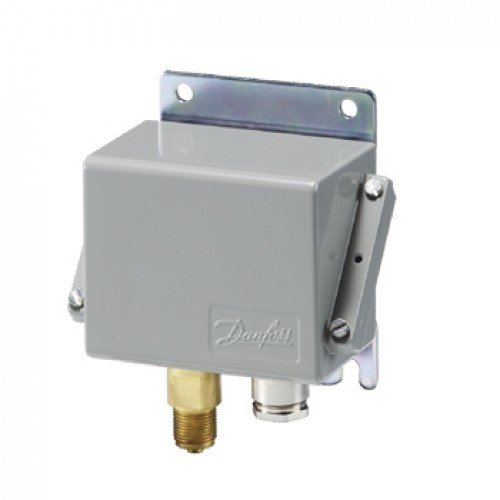

KPS Presostatlar / KPS37
%50
11.349,07 TL
5.674,53 TL
588,26 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060-310666
Fiyat
258,31 EUR + KDV
Havale
5.390,81 TL
(%5,00 havale indirimi)
6-18 bar, G1/4A, Otomatik resetli, IP67
Product details
| Gross weight | 1.01 Kg |
| Net weight | 0.95 Kg |
| EAN | 5702423146833 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL KRS LR LVD NKK RINA RMRS RoHS RoHS China TYSK UL |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 440 V DC13=12 W, 220 V AC1=10 A, 440 V AC3=6 A, 440 V LR max. 50 A for gold 1…30 mA, 5...30 V |
| Differential [bar] [Max] | 2.5 bar |
| Differential [bar] [Min] | 0.85 bar |
| Differential [psi] [Max] | 36 psi |
| Differential [psi] [Min] | 12 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP67 |
| Identical product | 060-411266 |
| Max. test pressure [bar] Pe | 27 bar |
| Max. test pressure [psig] | 392 psig |
| Max. Working Pressure [bar] | 22 bar |
| Max. Working Pressure [psig] | 319 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range category | Medium pressure |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product Group | Switches and thermostats |
| Product name | Pressure switch |
| Product type | KPS37 |
| Quantity per packing format | 8 pc |
| Regulation range [bar] Pe [Max] | 18 bar |
| Regulation range [bar] Pe [Min] | 6 bar |
| Regulation range [MPa] Pe [Max] | 1.8 MPa |
| Regulation range [MPa] Pe [Min] | 0.6 MPa |
| Regulation range [psig] Pe [Max] | 261 psig |
| Regulation range [psig] Pe [Min] | 87 psig |
| Reset function | Auto |
| Serviceable | No |
| UL approval file name | E73170 |
