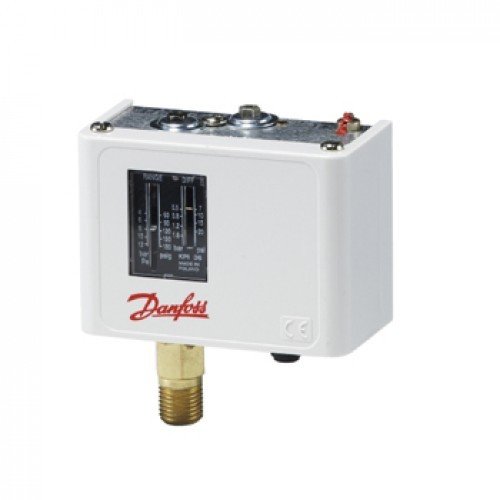

KPI Presostatlar / KPI38
%50
6.089,06 TL
3.044,53 TL
315,62 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060-508166
Fiyat
139,20 EUR + KDV
Havale
2.892,30 TL
(%5,00 havale indirimi)
8-28 bar, G1/4A, Otomatik resetli, IP30
| TYPE CODE | KPI38 |
| WEIGHT | 0.320 Kg |
| AMB. TEMP. NOTE | 80 °C/176 °F for max 120 min |
| AMBIENT TEMP. | -40 - 65 °C |
| AMBIENT TEMP. | -40 - 149 °F |
| APPROVAL | c UL us UL873, CS C22.2, CCC, CE, EAC, LVD, PZH, RINA, RoHS China |
| CONTACT FUNCTION | SPDT |
| CONTACT RATING | AC1=10 A, 440 V |
| CONTACT RATING | AC15=4 A, 440 V |
| CONTACT RATING | AC3=6 A, 440 V |
| CONTACT RATING | DC13=12 W, 220 V |
| CONTACT RATING | LR=36A, 240V |
| CONTACT RATING | LR=48A, 120V |
| DIFF. | 1,80 - 6,00 bar |
| DIFF. | 26,00 - 87,00 psi |
| EAN NO. | 5702423147335 |
| ELECTR. CONN. | Rubber cable gland |
| ELECTR. CONN. SIZE | 6-14 mm |
| EN 60947 ELECTRICAL PROPERTIES | Insulation: 400V |
| EN 60947 ELECTRICAL PROPERTIES | Pollution degree: 3 |
| EN 60947 ELECTRICAL PROPERTIES | Rated impulse voltage: 4 kV |
| EN 60947 ELECTRICAL PROPERTIES | Short circuit prot, fuse: 16A |
| EN 60947 WIRING PROPERTIES | Flex, ferrules: 0.5-1.5 mm2 |
| EN 60947 WIRING PROPERTIES | Flex, no ferrules: 0.7-2.5 mm2 |
| EN 60947 WIRING PROPERTIES | Solid/stranded: 0.75-2.5 mm2 |
| ENCLOSURE RATING | IP30 |
| NEMA RATING (~) | 1 |
| MAX. TEST PRESSURE | 30,0 bar |
| MAX. TEST PRESSURE | 435,0 psig |
| MAX. WORKING PRESSURE | 30,0 bar |
| MAX. WORKING PRESSURE | 435 psig |
| PACK FORMAT | Multi pack |
| PRESSURE CONN. STD. | ISO 228-1 |
| PRESSURE CONN. TYPE | G - 1/4 Male |
| PRESSURE SENSING ELEM. | Bellows |
| PRODUCT ACCESSORIES | Switches accessories |
| PROD. DESCRIPTION | Pressure switch |
| PROD. GROUP | Switches and thermostats |
| PROD. NAME | Pressure switch |
| PACK QTY. | 36 PC |
| REGUL. RANGE | 8,00 - 28,00 bar |
| REGUL. RANGE | 116,00 - 406,00 psig |
| RESET | AUTO |
| SERVICEABLE | No |
| UL APPROVAL FILE NAME | E31024 |
Bu ürüne ilk yorumu siz yapın!
