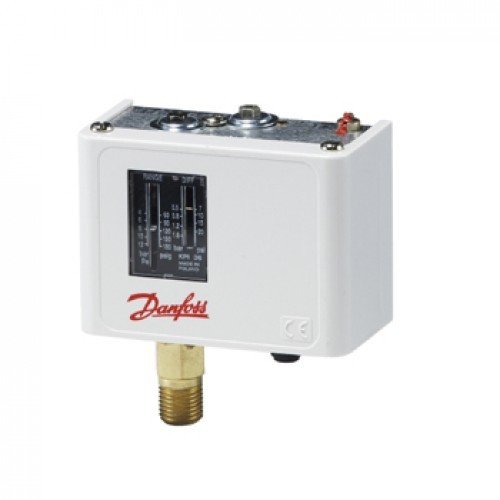

KPI Presostatlar / KPI35
%50
6.660,67 TL
3.330,34 TL
345,24 TL den başlayan taksitlerle!!
-0.2 -> 8 bar, G1/4A, Otomataik resetli, IP30
TYPE CODE | KPI35 |
WEIGHT | 0.313 Kg |
AMB. TEMP. NOTE | 80 °C/176 °F for max 120 min |
AMBIENT TEMP. | -40 - 65 °C |
AMBIENT TEMP. | -40 - 149 °F |
APPROVAL | c UL us UL873, CS C22.2, CCC, CE, EAC, LVD, PZH, RINA, RoHS China |
CONTACT FUNCTION | SPDT |
CONTACT RATING | AC1=10 A, 440 V |
CONTACT RATING | AC15=4 A, 440 V |
CONTACT RATING | AC3=6 A, 440 V |
CONTACT RATING | DC13=12 W, 220 V |
CONTACT RATING | LR=36A, 240V |
CONTACT RATING | LR=48A, 120V |
DIFF. | 0,40 - 1,50 bar |
DIFF. | 6,00 - 22,00 psi |
EAN NO. | 5702423146727 |
ELECTR. CONN. | Rubber cable gland |
ELECTR. CONN. SIZE | 6-14 mm |
EN 60947 ELECTRICAL PROPERTIES | Insulation: 400V |
EN 60947 ELECTRICAL PROPERTIES | Pollution degree: 3 |
EN 60947 ELECTRICAL PROPERTIES | Rated impulse voltage: 4 kV |
EN 60947 ELECTRICAL PROPERTIES | Short circuit prot, fuse: 16A |
EN 60947 WIRING PROPERTIES | Flex, ferrules: 0.5-1.5 mm2 |
EN 60947 WIRING PROPERTIES | Flex, no ferrules: 0.7-2.5 mm2 |
EN 60947 WIRING PROPERTIES | Solid/stranded: 0.75-2.5 mm2 |
ENCLOSURE RATING | IP30 |
NEMA RATING (~) | 1 |
IDENTICAL PROD. | 060-113066 |
MAX. TEST PRESSURE | 18,0 bar |
MAX. TEST PRESSURE | 261,0 psig |
MAX. WORKING PRESSURE | 18,0 bar |
MAX. WORKING PRESSURE | 261 psig |
PACK FORMAT | Multi pack |
PRESSURE CONN. STD. | ISO 228-1 |
PRESSURE CONN. TYPE | G - 1/4 Male |
PRESSURE SENSING ELEM. | Bellows |
PRODUCT ACCESSORIES | Switches accessories |
PROD. DESCRIPTION | Pressure switch |
PROD. GROUP | Switches and thermostats |
PROD. NAME | Pressure switch |
PACK QTY. | 36 PC |
REGUL. RANGE | 6 inHg - 116 psig |
REGUL. RANGE | -0,20 - 8,00 bar |
RESET | AUTO |
SERVICEABLE | No |
UL APPROVAL FILE NAME | E31024 |
