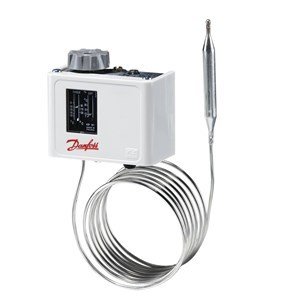

KP Termostatlar KP81
%50
6.683,08 TL
3.341,54 TL
346,41 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060L112566
Fiyat
152,11 EUR + KDV
Havale
3.174,46 TL
(%5,00 havale indirimi)
80-150 C, 2 m kap. sensör, Otom. reset, IP30
Product details
| Gross weight | 0.43 Kg |
| Net weight | 0.37 Kg |
| EAN | 5702423148646 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 150 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | BV CCC CE DNV EAC GL LVD PZH RINA RMRS RoHS China c UL us UL353, CS C22.2 c UL us UL873, CS C22.2 |
| Cap. tube length fraction [in] | 78 3/4 in |
| Capillary tube length [mm] | 2000 mm |
| Charge type | Adsorption |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Diff. @ Max. range setting [K] [Max] | 23 K |
| Diff. @ Max. range setting [K] [Min] | 7 K |
| Diff. @ Max. range setting[°C] [Max] | 23 °C |
| Diff. @ Max. range setting[°C] [Min] | 7 °C |
| Diff. @ Min. range setting [K] [Max] | 20 K |
| Diff. @ Min. range setting [K] [Min] | 6 K |
| Diff. @ Min. range setting[°C] [Max] | 20 °C |
| Diff. @ Min. range setting[°C] [Min] | 6 °C |
| Differential type | Adjustable |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Max. sensor temperature [°C] | 200 °C |
| Max. sensor temperature [°F] | 392 °F |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product family name | KP thermostat |
| Product Group | Switches and thermostats |
| Product name | Thermostat |
| Product type | KP81 |
| Quantity per packing format | 14 pc |
| Reset function | Auto |
| Sensor size (Ø x L) [in] | 3/8 x 3 3/8 in |
| Sensor size (Ø x L) [mm] | 9.5 x 85 mm |
| Sensor type | Remote bulb |
| Serviceable | No |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | 80 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | 176 °F |
| UL approval file name | E31024 MH27572 |
