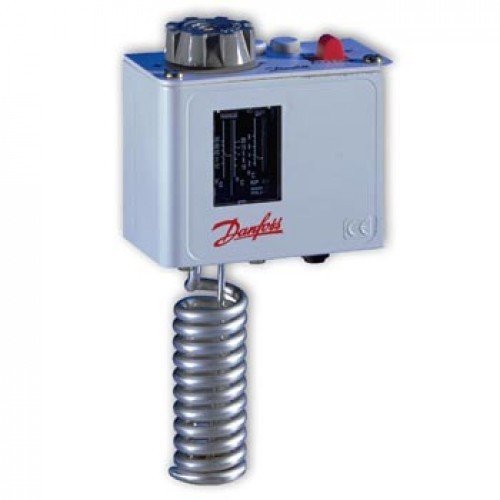

KP Termostatlar KP68
%20
4.033,13 TL
3.226,50 TL
334,48 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060L111166
Fiyat
92,20 EUR + KDV
Havale
3.065,18 TL
(%5,00 havale indirimi)
-5 -> 35 C, Oda sensörü, Otom. reset, IP30
Product details
Gross weight
0.34 Kg
Net weight
0.31 Kg
EAN
5702428014564
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max]
65 °C
Ambient temperature range [°C] [Min]
-40 °C
Ambient temperature range [°F] [Max]
150 °F
Ambient temperature range [°F] [Min]
-40 °F
Approval
BV
CCC
CE
DNV
EAC
GL
LR
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
Charge type
Vapour
Contact function
SPDT
Contact rating
AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V
Description
KP68
Diff. @ Max. range setting [K] [Max]
7 K
Diff. @ Max. range setting [K] [Min]
1.8 K
Diff. @ Max. range setting[°C] [Max]
7 °C
Diff. @ Max. range setting[°C] [Min]
1.8 °C
Diff. @ Min. range setting [K] [Max]
25 K
Diff. @ Min. range setting [K] [Min]
4.5 K
Diff. @ Min. range setting[°C] [Max]
25 °C
Diff. @ Min. range setting[°C] [Min]
4.5 °C
Differential type
Adjustable
Elect. conn.
Rubber cable gland
Electrical connection size
6-14 mm
Electrical spec. standard
EN 60947-5
EN 60947 electrical properties
Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
Max. Sensor temp.
248 °F
Max. Sensor temp.
120 °C
Pack qty.
36 pc
Packing format
Multi pack
Product accessories
Switches accessories
Product description
Thermostat
Product family name
KP thermostat
Product Group
Switches and thermostats
Product name
Thermostat
Reset
Auto
Sensor
Room sensor
Sensor size (Ø x L) [in]
1 1/2 x 1 1/4 in
Sensor size (Ø x L) [mm]
40 x 30 mm
Serviceable
No
Temperature range [°C] [Max]
35 °C
Temperature range [°C] [Min]
-5 °C
Temperature range [°F] [Max]
95 °F
Temperature range [°F] [Min]
23 °F
UL approval file name
E31024
| Gross weight | 0.34 Kg |
| Net weight | 0.31 Kg |
| EAN | 5702428014564 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 150 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | BV CCC CE DNV EAC GL LR LVD PZH RINA RMRS RoHS China c UL us UL873, CS C22.2 |
| Charge type | Vapour |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Description | KP68 |
| Diff. @ Max. range setting [K] [Max] | 7 K |
| Diff. @ Max. range setting [K] [Min] | 1.8 K |
| Diff. @ Max. range setting[°C] [Max] | 7 °C |
| Diff. @ Max. range setting[°C] [Min] | 1.8 °C |
| Diff. @ Min. range setting [K] [Max] | 25 K |
| Diff. @ Min. range setting [K] [Min] | 4.5 K |
| Diff. @ Min. range setting[°C] [Max] | 25 °C |
| Diff. @ Min. range setting[°C] [Min] | 4.5 °C |
| Differential type | Adjustable |
| Elect. conn. | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Max. Sensor temp. | 248 °F |
| Max. Sensor temp. | 120 °C |
| Pack qty. | 36 pc |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product family name | KP thermostat |
| Product Group | Switches and thermostats |
| Product name | Thermostat |
| Reset | Auto |
| Sensor | Room sensor |
| Sensor size (Ø x L) [in] | 1 1/2 x 1 1/4 in |
| Sensor size (Ø x L) [mm] | 40 x 30 mm |
| Serviceable | No |
| Temperature range [°C] [Max] | 35 °C |
| Temperature range [°C] [Min] | -5 °C |
| Temperature range [°F] [Max] | 95 °F |
| Temperature range [°F] [Min] | 23 °F |
| UL approval file name | E31024 |
