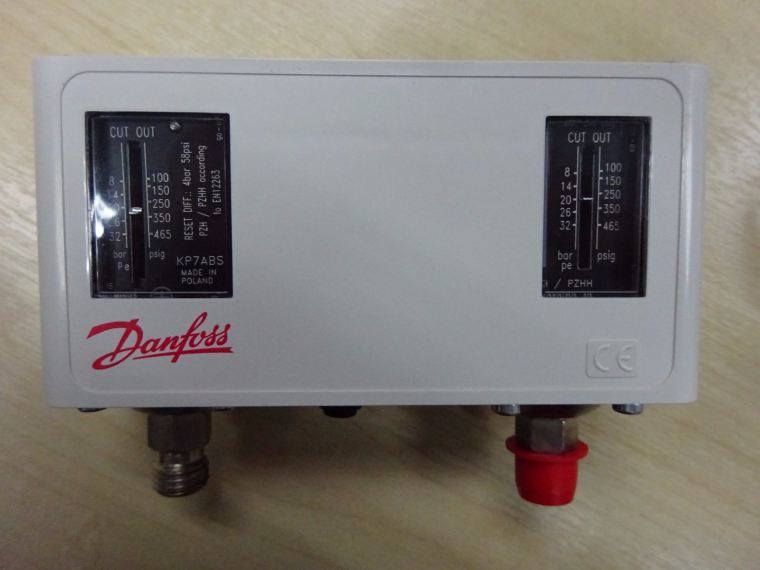

KP Serisi Alçak / Yüksek Basınç Presostatları KP7ABS
%20
12.508,62 TL
10.006,89 TL
1.037,38 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060-120566
Fiyat
240,50 EUR + KDV
Havale
9.506,55 TL
(%5,00 havale indirimi)
8-32 bar, M10x0.75, Maksimum resetli, IP30
| TYPE CODE | KP7ABS |
| WEIGHT | 0.735 Kg |
| AMBIENT TEMP. NOTE | 80 °C/176 °F for max 120 min |
| AMBIENT TEMP. RANGE | -25 - 65 °C |
| AMBIENT TEMP. RANGE | -13 - 149 °F |
| APPROVAL | c UL us UL873, CS C22.2, CCC, CE, DNV, EAC, LVD, PED, PZH, RINA, RMRS, RoHS China |
| BURST PRESSURE | 140,0 bar |
| CONTACT FUNCTION | 2 SPST(NC) |
| CONTACT RATING | AC1=16 A, 400 V |
| CONTACT RATING | AC15=10 A, 400 V |
| CONTACT RATING | AC3=16 A, 400 V |
| CONTACT RATING | DC13=12 W, 220 V |
| CONTACT RATING | LR=112 A, 400 V |
| DIFF. LEFT SIDE | 4,00 bar |
| DIFF. LEFT SIDE | 58,0 psi |
| DIFF. RIGHT SIDE | 4,0 bar |
| DIFF. RIGHT SIDE | 58,0 psi |
| EAN NO. | 5702428517102 |
| ELECTR. CONN. | Rubber cable gland |
| ELECTR. CONN. SIZE | 6-14 mm |
| EN 60947 ELECTR. PROPERTIES | Insulation: 400V |
| EN 60947 ELECTR. PROPERTIES | Pollution degree: 3 |
| EN 60947 ELECTR. PROPERTIES | Rated impulse voltage: 4 kV |
| EN 60947 ELECTR. PROPERTIES | Short circuit prot, fuse: 16A |
| EN 60947 WIRING PROPERTIES | Flex, ferrules: 0.5-1.5 mm2 |
| EN 60947 WIRING PROPERTIES | Flex, no ferrules: 0.7-2.5 mm2 |
| EN 60947 WIRING PROPERTIES | Solid/stranded: 0.75-2.5 mm2 |
| ENCLOSURE RATING | IP30 |
| NEMA RATING | 1 |
| MAX. TEST PRESS. LEFT | 35 bar |
| MAX. TEST PRESS. RIGHT | 35 bar |
| MWP LEFT SIDE | 35,0 bar |
| MWP LEFT SIDE | 510 Psig |
| MWP RIGHT SIDE | 35,0 bar |
| MWP RIGHT SIDE | 510,0 psig |
| PACK FORMAT | Multi pack |
| PRESS. CONN. STD. | ISO 261 |
| PRESS. CONN. TYPE | M - 10 x 0.75 Male |
| PRESS. SENSING ELEM. | Bellows |
| PRODUCT ACCESSORIES | Switches accessories |
| DESCRIPT. | Dual Pressure Control |
| PROD. GROUP | Switches and thermostats |
| PROD. NAME | Pressure switch |
| PACK QTY. | 10 pc |
| REFRIGERANT | R113 |
| REFRIGERANT | R124 |
| REFRIGERANT | R134a |
| REFRIGERANT | R22 |
| REFRIGERANT | R404A |
| REFRIGERANT | R407A |
| REFRIGERANT | R407C |
| REFRIGERANT | R407F |
| REFRIGERANT | R407H |
| REFRIGERANT | R422B |
| REFRIGERANT | R422D |
| REFRIGERANT | R438A |
| REFRIGERANT | R448A |
| REFRIGERANT | R449A |
| REFRIGERANT | R450A |
| REFRIGERANT | R452A |
| REFRIGERANT | R507A |
| REFRIGERANT | R513A |
| REFRIGERANT | R717 |
| REG. LEFT | 8,00 - 32,00 bar |
| REG. LEFT | 116,00 - 464,00 psig |
| REG. RIGHT | 8,0 - 32,0 bar |
| REG. RIGHT | 116,0 - 464,0 psig |
| RESET LEFT | Manual Max |
| RESET RIGHT | Manual Max |
| SERVICEABLE | No |
| UL APPROVAL FILE | E31024 |
