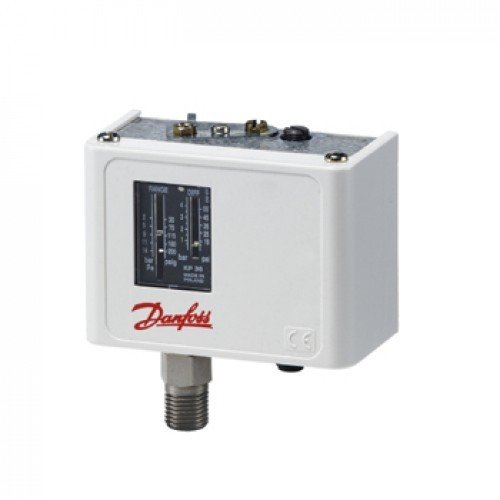

KP Presostatlar / KP37
%20
3.677,43 TL
2.941,94 TL
304,98 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060-216266
Fiyat
83,70 EUR + KDV
Havale
2.794,85 TL
(%5,00 havale indirimi)
4-20 bar, G1/2A, Manuel resetli, IP30 Paslanmaz çelik körüklü, Kazan versiyonu
| TYPE CODE | KP37 |
| WEIGHT | 0.350 Kg |
| AMB. TEMP. NOTE | 80 °C/176 °F for max 120 min |
| AMBIENT TEMP. | -40 - 65 °C |
| AMBIENT TEMP. | -40 - 149 °F |
| APPROVAL | c UL us UL353, CS C22.2, c UL us UL873, CS C22.2, CCC, CE, EAC, LVD, PZH, RINA, RMRS, RoHS China |
| CONTACT FUNCTION | SPDT |
| CONTACT RATING | 120Vac,16FLA,96LRA,3APilotDuty |
| CONTACT RATING | 16 A resistive, single phase |
| CONTACT RATING | 240 V ac, 8 FLA, 48 LRA |
| CONTACT RATING | 240V dc,12W pilot duty(0.05 A) |
| CONTACT RATING | 8 A resistive, single phase |
| DIFF. | 3,00 bar |
| DIFF. | 44,00 psi |
| EAN NO. | 5702428365376 |
| ELECTR. CONN. | Rubber cable gland |
| ELECTR. CONN. SIZE | 6-14 mm |
| EN 60947 ELECTRICAL PROPERTIES | Insulation: 400V |
| EN 60947 ELECTRICAL PROPERTIES | Pollution degree: 3 |
| EN 60947 ELECTRICAL PROPERTIES | Rated impulse voltage: 4 kV |
| EN 60947 ELECTRICAL PROPERTIES | Short circuit prot, fuse: 16A |
| EN 60947 WIRING PROPERTIES | Flex, ferrules: 0.5-1.5 mm2 |
| EN 60947 WIRING PROPERTIES | Flex, no ferrules: 0.7-2.5 mm2 |
| EN 60947 WIRING PROPERTIES | Solid/stranded: 0.75-2.5 mm2 |
| ENCLOSURE RATING | IP30 |
| NEMA RATING (~) | 1 |
| MAX. TEST PRESSURE | 32,0 bar |
| MAX. TEST PRESSURE | 464,0 psig |
| MAX. WORKING PRESSURE | 28,0 bar |
| MAX. WORKING PRESSURE | 405 psig |
| PACK FORMAT | Multi pack |
| PRESSURE CONN. STD. | ISO 228-1 |
| PRESSURE CONN. TYPE | G - 1/2 Male |
| PRESSURE SENSING ELEM. | Bellows |
| PRODUCT ACCESSORIES | Switches accessories |
| PROD. DESCRIPTION | Pressure switch |
| PROD. GROUP | Switches and thermostats |
| PROD. NAME | Pressure switch |
| PACK QTY. | 36 PC |
| REGUL. RANGE | 4,00 - 21,00 bar |
| REGUL. RANGE | 58,00 - 300,00 psig |
| RESET | Manual Max |
| SERVICEABLE | No |
| UL APPROVAL FILE NAME | E31024 |
| UL APPROVAL FILE NAME | MH27572 |
