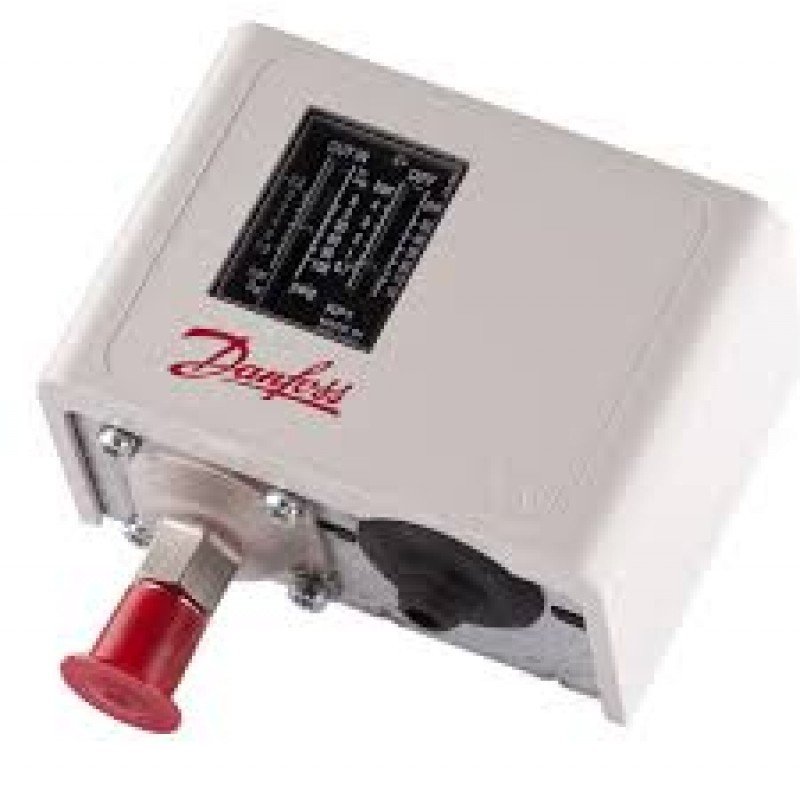

KP Presostatlar / KP2
%20
2.640,54 TL
2.112,44 TL
218,99 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060-131866
Fiyat
60,10 EUR + KDV
Havale
2.006,81 TL
(%5,00 havale indirimi)
+0.2 -> 3.5 bar, Otomatik resetli, IP30
| TYPE CODE | KP2 |
| WEIGHT | 0.262 Kg |
| AMBIENT TEMP. NOTE | 80 °C/176 °F for max 120 min |
| AMBIENT TEMP. RANGE | -25 - 65 °C |
| AMBIENT TEMP. RANGE | -13 - 149 °F |
| APPROVAL | BV, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2, CCC, CE, DNV, EAC, GL, LR, LVD, PED, PZH, RINA, RMRS, RoHS China |
| CONTACT FUNCTION | SPDT |
| CONTACT RATING | AC1=16 A, 400 V |
| CONTACT RATING | AC15=10 A, 400 V |
| CONTACT RATING | AC3=16 A, 400 V |
| CONTACT RATING | DC13=12 W, 220 V |
| CONTACT RATING | LR=112 A, 400 V |
| DIFF. | 0,30 - 1,00 bar |
| DIFF. | 4,50 - 14,50 psi |
| EAN NO. | 5702428279406 |
| ELECTR. CONN. | Rubber cable gland |
| ELECTR. CONN. SIZE | 6-14 mm |
| EN 60947 ELECTR. PROPERTIES | Insulation: 400V |
| EN 60947 ELECTR. PROPERTIES | Pollution degree: 3 |
| EN 60947 ELECTR. PROPERTIES | Rated impulse voltage: 4 kV |
| EN 60947 ELECTR. PROPERTIES | Short circuit prot, fuse: 16A |
| EN 60947 WIRING PROPERTIES | Flex, ferrules: 0.5-1.5 mm2 |
| EN 60947 WIRING PROPERTIES | Flex, no ferrules: 0.7-2.5 mm2 |
| EN 60947 WIRING PROPERTIES | Solid/stranded: 0.75-2.5 mm2 |
| ENCLOSURE RATING | IP30 |
| NEMA RATING | 1 |
| MAX. TEST PRESSURE | 12,0 bar |
| MAX. TEST PRESSURE | 174,0 psig |
| MWP | 10,0 bar |
| MWP | 145 Psig |
| PACK FORMAT | Multi pack |
| PRESS. CONN. STD. | ISO 228-1 |
| PRESS. CONN. TYPE | G - 1/4 Male |
| PRESS. SENSING ELEM. | Bellows |
| PRODUCT ACCESSORIES | Switches accessories |
| DESCRIPT. | Pressure switch |
| PROD. GROUP | Switches and thermostats |
| PROD. NAME | Pressure switch |
| PACK QTY. | 36 pc |
| REFRIGERANT | R113 |
| REFRIGERANT | R124 |
| REFRIGERANT | R134a |
| REFRIGERANT | R22 |
| REFRIGERANT | R404A |
| REFRIGERANT | R407A |
| REFRIGERANT | R407C |
| REFRIGERANT | R407F |
| REFRIGERANT | R407H |
| REFRIGERANT | R422B |
| REFRIGERANT | R422D |
| REFRIGERANT | R438A |
| REFRIGERANT | R448A |
| REFRIGERANT | R449A |
| REFRIGERANT | R450A |
| REFRIGERANT | R452A |
| REFRIGERANT | R507A |
| REFRIGERANT | R513A |
| REG. RANGE | 0,20 - 3,50 bar |
| REGULATION RANGE PE | 3,00 - 51,00 psig |
| RESET | Auto |
| SERVICEABLE | No |
| UL APPROVAL FILE | E31024 |
| UL APPROVAL FILE | MH27572 |
