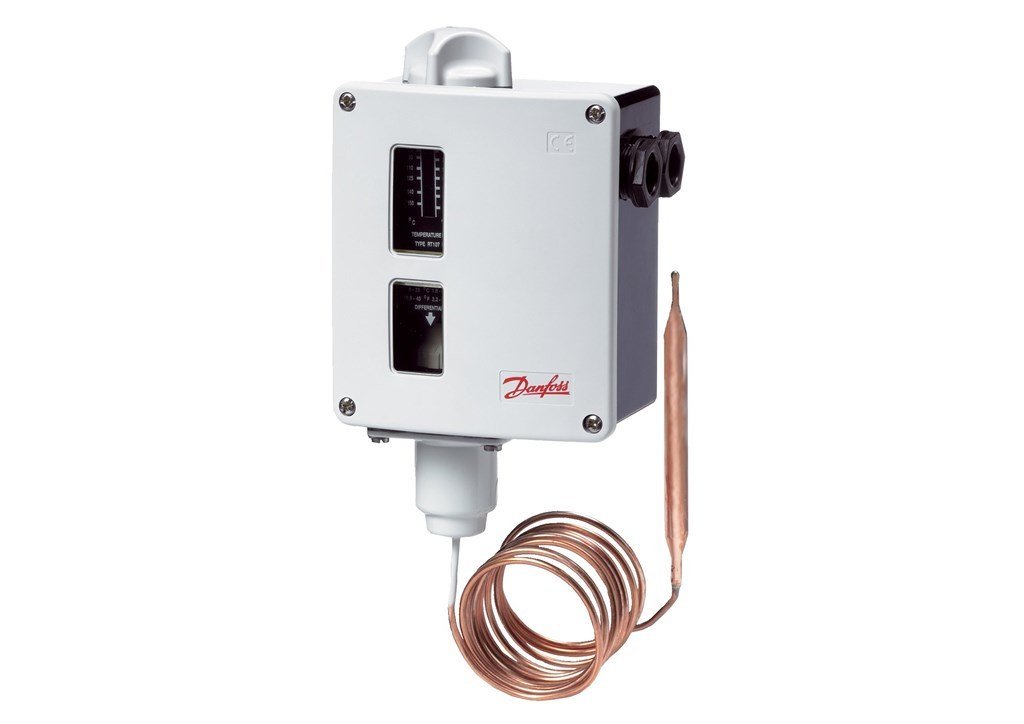

Ex-proof RT Termostatlar (Ex II 2G Ex ia IIC T6 Gb) RT14E
%20
8.106,16 TL
6.484,93 TL
672,27 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
017-509866
Fiyat
184,50 EUR + KDV
Havale
6.160,68 TL
(%5,00 havale indirimi)
-5 -> 30 C, 2 m kap. sensör, Otom. res., IP66
Product details
| Gross weight | 1.12 Kg |
| Net weight | 0.99 Kg |
| EAN | 5702428128919 |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | ATEX - Cat. 2 - Zone 1 CCC CE EAC PZH RMRS RoHS RoHS China TYSK |
| ATEX Sales text | -20C
|
| Cap. tube length fraction [in] | 78 3/4 in |
| Capillary tube length [mm] | 2000 mm |
| Charge type | Adsorption |
| Contact function | SPDT gold |
| Contact rating | Ci=0.5 nF Ii=0.5 A Li=0.2 μH Pi=1 W Ui=29 V |
| Diff. @ Max. range setting[°C] [Max] | 10 °C |
| Diff. @ Max. range setting[°C] [Min] | 2 °C |
| Diff. @ Min. range setting[°C] [Max] | 8 °C |
| Diff. @ Min. range setting[°C] [Min] | 2 °C |
| Differential type | Adjustable |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| Max. sensor temperature [°C] | 150 °C |
| Max. sensor temperature [°F] | 302 °F |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product family name | RT thermostat |
| Product Group | Switches and thermostats |
| Product name | Thermostat |
| Product type | RT14E |
| Quantity per packing format | 15 pc |
| Reset function | Auto |
| Sensor size (Ø x L) [in] | 3/8 x 4 1/4 in |
| Sensor size (Ø x L) [mm] | 9.5 x 110 mm |
| Sensor type | Remote bulb |
| Serviceable | Contact systems |
| Temperature range [°C] [Max] | 30 °C |
| Temperature range [°C] [Min] | -5 °C |
| Temperature range [°F] [Max] | 86 °F |
| Temperature range [°F] [Min] | 23 °F |
