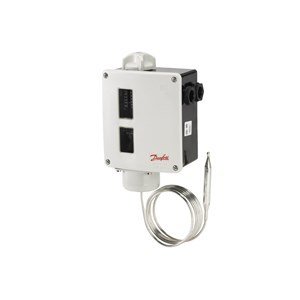

Ex-proof RT Termostatlar (Ex II 2G Ex ia IIC T6 Gb) RT101E
%20
12.418,71 TL
9.934,96 TL
1.029,92 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
017-512666
Fiyat
283,90 EUR + KDV
Havale
9.438,22 TL
(%5,00 havale indirimi)
25-90 C, 2 m kap. sensör, Otom. res., IP66
Product details
| Gross weight | 1.1 Kg |
| Net weight | 0.98 Kg |
| EAN | 5702423245239 |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | ATEX - Cat. 2 - Zone 1 CCC CE EAC PZH RMRS RoHS RoHS China TYSK |
| ATEX Sales text | -20C
|
| Cap. tube length fraction [in] | 78 3/4 in |
| Capillary tube length [mm] | 2000 mm |
| Charge type | Adsorption |
| Contact function | SPDT gold |
| Contact rating | Ci=0.5 nF Ii=0.5 A Pi=1 W Ui=29 V Li=0.2 uH |
| Diff. @ Max. range setting[°C] [Max] | 20 °C |
| Diff. @ Max. range setting[°C] [Min] | 3.5 °C |
| Diff. @ Min. range setting[°C] [Max] | 10 °C |
| Diff. @ Min. range setting[°C] [Min] | 2.4 °C |
| Differential type | Adjustable |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
