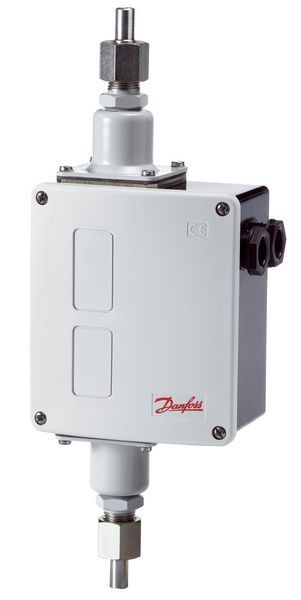

Ex-proof RT Fark Basınç Presostatları (Ex II 2G Ex ia IIC T6 Gb) / RT260AE
%20
18.993,46 TL
15.194,77 TL
1.575,19 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
017D003666
Fiyat
432,30 EUR + KDV
Havale
14.435,03 TL
(%5,00 havale indirimi)
0.5-4 bar, G3/8A, Otomatik resetli, IP66
| TYPE CODE | RT260AE |
| WEIGHT | 1.13 Kg |
| ALARM SIGNAL | Falling |
| AMBIENT TEMP. | -50 - 70 °C |
| AMBIENT TEMP. | -58 - 158 °F |
| APPROVAL | ATEX - Cat. 2 - Zone 1, CCC, CE, EAC, PZH, RMRS, RoHS, RoHS China, TYSK |
| ATEX TEXT | -20C |
| ATEX TEXT | II 2G Ex ia IIC T6...T1 Gb |
| CONTACT DIFF. | 0,30 bar |
| CONTACT FUNCTION | SPDT |
| CONTACT RATING | Ci=0.5 nF |
| CONTACT RATING | Ii=0.5 A |
| CONTACT RATING | Li=0.2 uH |
| CONTACT RATING | Pi=1 W |
| CONTACT RATING | Ui=29 V |
| DIFF. PRESSURE SETTING RANGE | 0,50 - 4,00 bar |
| DIFF. PRESSURE SETTING RANGE | 0,05 - 0,40 MPa |
| DIFF. PRESSURE SETTING RANGE | 7,0 - 58,0 psi |
| EAN NO. | 5702428131483 |
| ELECTR. CONN. MALE/FEMALE | Female |
| ELECTR. CONN. | Screwed cable entry |
| ELECTR. CONN. SIZE | 2xPg 13.5 |
| ELECTR. CONN. STD. | DIN 40430 |
| ELECTR. SPEC. STANDARD | EN 60947-4/-5 |
| EN 60947 ELECTRICAL PROPERTIES | Insulation: 400V |
| EN 60947 ELECTRICAL PROPERTIES | Pollution degree: 3 |
| EN 60947 ELECTRICAL PROPERTIES | Rated impulse voltage: 4 kV |
| EN 60947 ELECTRICAL PROPERTIES | Short circuit prot, fuse: 10A |
| EN 60947 WIRING PROPERTIES | Flex, ferrules: 0.2-1.5 mm2 |
| EN 60947 WIRING PROPERTIES | Flex, no ferrules: 0.2-2.5 mm2 |
| EN 60947 WIRING PROPERTIES | Solid/stranded: 0.2-2.5 mm2 |
| ENCLOSURE RATING | IP66 |
| FACTORY SETTING | 0,05 bar |
| FACTORY SETTING | 0,005 MPa |
| FACTORY SETTING | 1,0 psig |
| MAX. TEST PRESSURE | 25,0 bar |
| MAX. TEST PRESSURE | 362,0 psig |
| MAX. WORKING PRESSURE | 22,0 bar |
| MAX. WORKING PRESSURE | 319 psig |
| REGULATION RANGE | -1 - 18 bar |
| REGULATION RANGE | -15 - 261 psig |
| PACK FORMAT | Multi pack |
| PRESSURE CONN. SIZE | 3/8 |
| PRESSURE CONN. STD. | ISO 228-1 |
| PRESSURE CONN. TYPE | G |
| PRESSURE MALE/FEMALE | Male |
| PRESSURE RANGE | -1,00 - 18,00 bar |
| PRESSURE RANGE | -15,0 - 261,0 psig |
| PRODUCT ACCESSORIES | Generic accessories |
| PRODUCT ACCESSORIES | Switches accessories |
| PROD. DESCRIPTION | Diff. Pressure Switch |
| PROD. GROUP | Switches and thermostats |
| PROD. NAME | Differential pressure switch |
| PACK QTY. | 9 PC |
| RESET | AUTO |
| SERVICEABLE | Contact systems |
