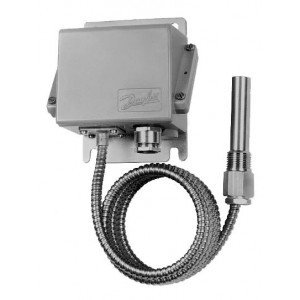

CAS Termostatlar (Marin onaylı) Zırhlı Kapılar Sensörlü KPS81
%50
18.664,38 TL
9.332,19 TL
967,44 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060L313466
Fiyat
424,81 EUR + KDV
Havale
8.865,58 TL
(%5,00 havale indirimi)
60-150 C, 5 m zırhlı sensörlü, Otom. rstli, IP67
Product details
| Gross weight | 1.53 Kg |
| Net weight | 1.45 Kg |
| EAN | 5702423147861 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL LR LVD NKK RINA RMRS RoHS RoHS China TYSK UL |
| Cap. tube | 5000 mm |
| Cap. tube length fraction [in] | 196 7/8 in |
| Charge type | Adsorption |
| Connection for pocket or hose | M 18 x 1.5 |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 440 V DC13=12 W, 220 V AC1=10 A, 440 V AC3=6 A, 440 V for gold 1…30mA, 5...30V |
| Description | KPS81 |
| Diff. @ Min. range setting [K] [Max] | 25 K |
| Diff. @ Min. range setting [K] [Min] | 5 K |
| Diff. @ Min. range setting[°C] [Max] | 25 °C |
| Diff. @ Min. range setting[°C] [Min] | 5 °C |
| Differential type | Adjustable |
| Elect. conn. | Screwed cable entry |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP67 |
| Equipm. | Armored cap. tube |
| Max. Sensor temp. | 482 °F |
| Max. Sensor temp. | 250 °C |
| Pack qty. | 10 pc |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product family name | KP thermostat |
| Product Group | Switches and thermostats |
| Product name | Thermostat |
| Reset | Auto |
| Sensor | Remote bulb |
| Sensor pocket length min. [in] | 4 3/8 in |
| Sensor pocket length min. [mm] | 110 mm |
| Sensor size (Ø x L) [in] | 1/2 x 3 1/2 in |
| Sensor size (Ø x L) [mm] | 13 x 90 mm |
| Serviceable | No |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | 60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | 140 °F |
| UL approval file name | E73170 |
