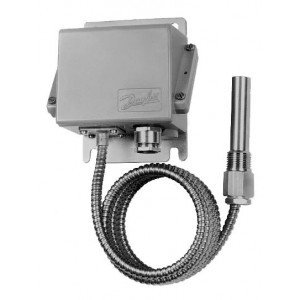

CAS Termostatlar (Marin onaylı) Zırhlı Kapılar Sensörlü KPS79
%50
12.737,00 TL
6.368,50 TL
660,20 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060L310466
Fiyat
289,90 EUR + KDV
Havale
6.050,08 TL
(%5,00 havale indirimi)
50-100 C, 2 m zırhlı sensörlü, Otom. rstli, IP67
Product details
| Gross weight | 1.19 Kg |
| Net weight | 1.12 Kg |
| EAN | 5702423147588 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL LR LVD NKK RINA RMRS RoHS RoHS China TYSK UL |
| Cap. tube | 2000 mm |
| Cap. tube length fraction [in] | 78 3/4 in |
| Charge type | Adsorption |
| Connection for pocket or hose | M 18 x 1.5 |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 440 V DC13=12 W, 220 V AC1=10 A, 440 V AC3=6 A, 440 V for gold 1…30mA, 5...30V |
| Description | KPS79 |
| Diff. @ Min. range setting [K] [Max] | 16 K |
| Diff. @ Min. range setting [K] [Min] | 4 K |
| Diff. @ Min. range setting[°C] [Max] | 16 °C |
| Diff. @ Min. range setting[°C] [Min] | 4 °C |
| Differential type | Adjustable |
| Elect. conn. | Screwed cable entry |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP67 |
| Equipm. | Armored cap. tube |
| Max. Sensor temp. | 392 °F |
| Max. Sensor temp. | 200 °C |
| Pack qty. | 10 pc |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product family name | KP thermostat |
| Product Group | Switches and thermostats |
| Product name | Thermostat |
| Reset | Auto |
| Sensor | Remote bulb |
| Sensor pocket length min. [in] | 3 in |
| Sensor pocket length min. [mm] | 75 mm |
| Sensor size (Ø x L) [in] | 1/2 x 2 1/2 in |
| Sensor size (Ø x L) [mm] | 13 x 63 mm |
| Serviceable | No |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | 50 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | 122 °F |
| UL approval file name | E73170 |
Documents
