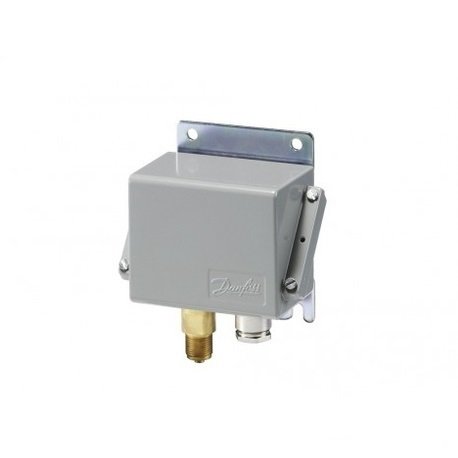

CAS Presostatlar (Marin onaylı) CAS139
%50
11.649,41 TL
5.824,71 TL
603,83 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060-315366
Fiyat
243,98 EUR + KDV
Havale
5.533,47 TL
(%5,00 havale indirimi)
10-35 bar, G1/4A, Otomatik resetli, IP6
Product details
| Gross weight | 1.03 Kg |
| Net weight | 0.95 Kg |
| EAN | 5702423151721 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABS BV CCC CE DNV EAC GL LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| Burst pressure [bar] | 100 bar |
| Contact function | SPDT |
| Contact rating | AC14=0.1 A, 220 V AC15=0.1 A, 220 V DC13=12 W, 125 V |
| Differential [bar] | 0.6 bar |
| Differential [psi] | 8.7 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Enclosure rating IP | IP67 |
| Max. test pressure [bar] Pe | 53 bar |
| Max. test pressure [psig] | 769 psig |
| Max. Working Pressure [bar] | 53 bar |
| Max. Working Pressure [psig] | 769 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product Group | Switches and thermostats |
| Product name | Pressure switch |
| Product type | CAS139 |
| Quantity per packing format | 8 pc |
| Regulation range [bar] Pe [Max] | 35 bar |
| Regulation range [bar] Pe [Min] | 10 bar |
| Regulation range [psig] Pe [Max] | 508 psig |
| Regulation range [psig] Pe [Min] | 145 psig |
| Serviceable | No |
