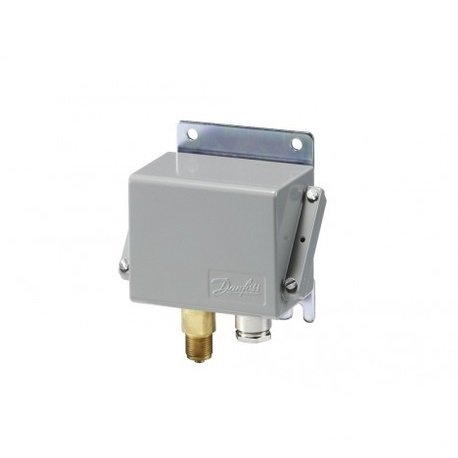

CAS Presostatlar (Marin onaylı) CAS137
%50
10.719,47 TL
5.359,73 TL
555,63 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060-315266
Fiyat
243,98 EUR + KDV
Havale
5.091,75 TL
(%5,00 havale indirimi)
6-18 bar, G1/4A, Otomatik resetli, IP67
Product details
| Gross weight | 1.01 Kg |
| Net weight | 0.92 Kg |
| EAN | 5702423151714 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABS BV CCC CE DNV EAC GL LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| Burst pressure [bar] | 72 bar |
| Contact function | SPDT |
| Contact rating | AC14=0.1 A, 220 V AC15=0.1 A, 220 V DC13=12 W, 125 V |
| Differential [bar] | 0.3 bar |
| Differential [psi] | 4.4 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Enclosure rating IP | IP67 |
| Max. test pressure [bar] Pe | 27 bar |
| Max. test pressure [psig] | 392 psig |
| Max. Working Pressure [bar] | 27 bar |
| Max. Working Pressure [psig] | 392 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product Group | Switches and thermostats |
| Product name | Pressure switch |
| Product type | CAS137 |
| Quantity per packing format | 8 pc |
| Regulation range [bar] Pe [Max] | 18 bar |
| Regulation range [bar] Pe [Min] | 6 bar |
| Regulation range [psig] Pe [Max] | 261 psig |
| Regulation range [psig] Pe [Min] | 87 psig |
| Serviceable | No |
