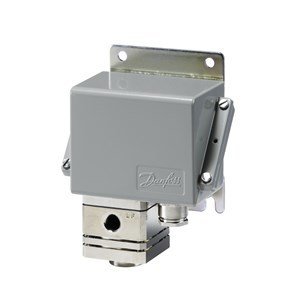

CAS Fark Basınç Presostatı (Marin onaylı) CAS155
%50
33.272,42 TL
16.636,21 TL
1.724,62 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
060-313066
Fiyat
760,63 EUR + KDV
Havale
15.804,40 TL
(%5,00 havale indirimi)
0.2-2.5 bar, 2 x G1/4 iç dişli, Otomatik resetli, IP67
Product details
| Gross weight | 1.62 Kg |
| Net weight | 1.55 Kg |
| EAN | 5702423151646 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -25 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -13 °F |
| Ammonia application | No |
| Approval | ABS BV CCC CE DNV EAC GL LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| Burst pressure [bar] | 42 bar |
| Contact differential [bar] | 0.1 bar |
| Contact function | SPDT |
| Contact rating | AC14=0.1 A, 220 V AC15=0.1 A, 220 V DC13=12 W, 125 V |
| Diff.press.setting range [bar] [Max] | 2.5 bar |
| Diff.press.setting range [bar] [Min] | 0.2 bar |
| Diff.press.setting range [MPa] [Max] | 0.25 MPa |
| Diff.press.setting range [MPa] [Min] | 0.02 MPa |
| Diff.press.setting range [psi] [Max] | 36.2 psi |
| Diff.press.setting range [psi] [Min] | 2.9 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Enclosure rating IP | IP67 |
| Max. test pressure [bar] Pe | 22 bar |
| Max. test pressure [psig] | 319 psig |
| Max. Working Pressure [bar] | 22 bar |
| Max. Working Pressure [psig] | 319 psig |
| Operat. range LP side [bar] Pe [Max] | 8 bar |
| Operat. range LP side [bar] Pe [Min] | 0 bar |
| Operat. range LP side [psig]Pe [Max] | 115 psig |
| Operat. range LP side [psig]Pe [Min] | 0 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Product accessories | Generic accessories |
| Product description | Diff. Pressure Switch |
| Product Group | Switches and thermostats |
| Product name | Differential pressure switch |
| Product type | CAS155 |
| Quantity per packing format | 8 pc |
| Reset function | Auto |
| Serviceable | No |
