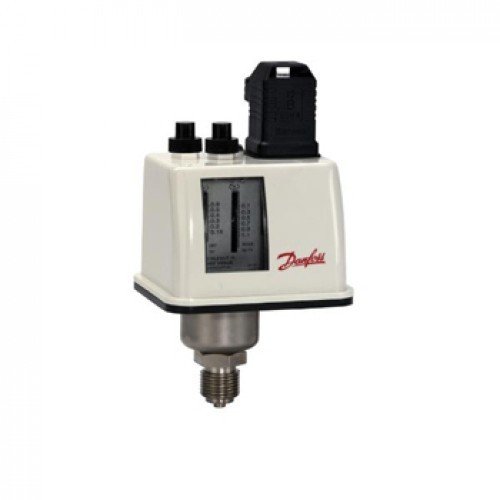

BCP Presostatlar BCP7
%50
17.753,59 TL
8.876,80 TL
920,23 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
017B0026
Fiyat
404,08 EUR + KDV
Havale
8.432,96 TL
(%5,00 havale indirimi)
10-40 bar, G1/2A, Otomatik resetli, IP65
| TYPE CODE | BCP7 |
| WEIGHT | 0.492 Kg |
| AMBIENT TEMP. | -20 - 70 °C |
| AMBIENT TEMP. | -4 - 158 °F |
| APPROVAL | CE, EAC, EMCD, LVD, PED, RoHS, TÜV, TYSK |
| APPROVAL FILE | TÜV .SDWFS/SDBFS .15-335 |
| BURST PRESSURE | 94,5 bar |
| CONTACT FUNCTION | SPDT gold |
| CONTACT LOAD TYPE | A |
| CONTACT RATING | AC1=6 A, 250 V |
| CONTACT RATING | AC15=1 A, 250 V |
| CONTACT RATING | DC13=10 W, 250 V |
| DIFF. | 3,00 - 6,00 bar |
| DIFF. | 43,50 - 87,00 psi |
| EAN NO. | 5702423248094 |
| ELECTR. CONN. MALE/FEMALE | Female |
| ELECTR. CONN. | DIN-plug |
| ELECTR. CONN. | EN 175301-803 Pg 11 |
| ELECTR. SPEC. STANDARD | EN 60947-4/-5 |
| ENCLOSURE RATING | IP65 |
| MAX. TEST PRESSURE | 69,3 bar |
| MAX. TEST PRESSURE | 1.005,0 psig |
| MAX. WORKING PRESSURE | 63,0 bar |
| MAX. WORKING PRESSURE | 915 psig |
| PACK FORMAT | Multi pack |
| PRESSURE CONN. STD. | ISO 228-1 |
| PRESSURE CONN. TYPE | G - 1/2 Male |
| PRESSURE SENSING ELEM. | Bellows |
| PRODUCT ACCESSORIES | Switches accessories |
| PROD. DESCRIPTION | Pressure switch |
| PROD. GROUP | Switches and thermostats |
| PROD. NAME | Pressure switch |
| PACK QTY. | 9 PC |
| REGUL. RANGE | 10,00 - 40,00 bar |
| REGUL. RANGE | 145,00 - 580,10 psig |
| RESET | AUTO |
| SERVICEABLE | No |
