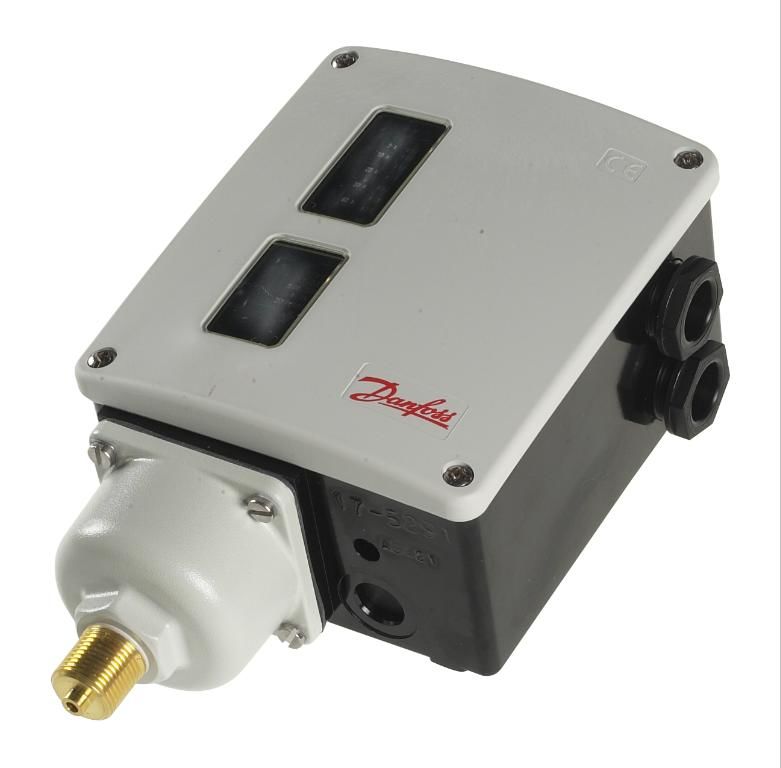

PRESOSTATLAR / RT200
%50
7.097,95 TL
3.548,97 TL
Kategori
Marka
Stok Kodu
017-523766
Fiyat
170,48 EUR + KDV
Havale
3.371,53 TL
(%5,00 havale indirimi)
Product details
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -50 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -58 °F |
| Approval | BV CCC CE DNV EAC GL KR LR LVD NKK PZH RINA RMRS RoHS RoHS China TYSK |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V |
| Differential [bar] [Max] | 1.2 bar |
| Differential [bar] [Min] | 0.25 bar |
| Differential [psi] [Max] | 17.4 psi |
| Differential [psi] [Min] | 3.6 psi |
| EAN | 5702423120918 |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| Gross weight | 0.96 Kg |
| Max. test pressure [bar] Pe | 25 bar |
| Max. test pressure [psig] | 363 psig |
| Max. Working Pressure [bar] | 22 bar |
| Max. Working Pressure [psig] | 320 psig |
| Net weight | 0.88 Kg |
| Packing format | Multi pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | RT Pressure switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 15 pc |
| Refrigerants | R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R507C |
| Regulation range [bar] Pe [Max] | 6 bar |
| Regulation range [bar] Pe [Min] | 0.2 bar |
| Regulation range [psig] Pe [Max] | 87 psig |
| Regulation range [psig] Pe [Min] | 2.9 psig |
| Reset function | Auto |
| Serviceable | Contact systems |
| Type | RT200 |
