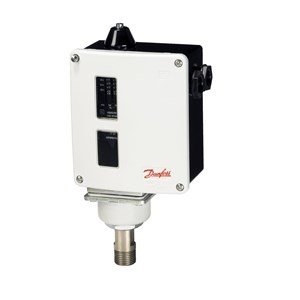

PRESOSTATLAR (PED onaylı - Buhar tesisleri için) / RT19W
%20
14.185,07 TL
11.348,06 TL
Kategori
Marka
Stok Kodu
017-518166
Fiyat
340,70 EUR + KDV
Havale
10.780,65 TL
(%5,00 havale indirimi)
Product details
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCC CE EAC GL LVD PED PZH RMRS RoHS RoHS China TYSK TÜV |
| Burst pressure [bar] | 136 bar |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V |
| Differential [bar] | 1.2 bar |
| Differential [psi] | 17.4 psi |
| EAN | 5702428043014 |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| Gross weight | 1.13 Kg |
| Max. test pressure [bar] Pe | 47 bar |
| Max. test pressure [psig] | 682 psig |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| Net weight | 1.03 Kg |
| Packing format | Multi pack |
| Pressure connection size | 1/2 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | RT Pressure switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 15 pc |
| Regulation range [bar] Pe [Max] | 25 bar |
| Regulation range [bar] Pe [Min] | 5 bar |
| Regulation range [psig] Pe [Max] | 362.6 psig |
| Regulation range [psig] Pe [Min] | 72.5 psig |
| Reset function | Auto |
| Serviceable | Contact systems |
| Type | RT19W |
